Sanitation, Racks & Organisation Specifications

Keep the Kitchen Ready

A kitchen is only as fast as its turnaround between shifts. When buyers treat shelving, dish racks, prep tables, and floor squeegees as an afterthought at the bottom of an invoice, they end up with rusting wire racks in the walk-in, water pooling under prep tables, and broken glasses in mismatched dish crates.

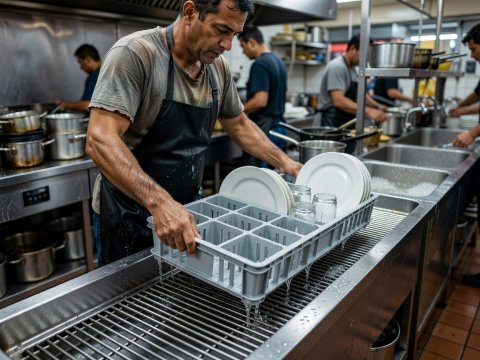

Kitchen worker sliding a compartmentalised polypropylene dish rack onto a stainless drainboard

Dish Pit Standardisation

500 x 500 mm (19.75 in) Rack Architecture

Commercial door-type and conveyor dishwashers are built around the universal 500 x 500 mm (19.75 x 19.75 in) polypropylene rack footprint. Yet many kitchens buy stemware racks from three different distributors whose snap-on extender risers do not interlock. Standardise on a single open-profile rack system so water jets hit glassware from all four sides and empty racks stack on rolling dollies without toppling.

Prep Table Metallurgy

14-Gauge 304 vs. 18-Gauge 430 Worktables

Stainless worktables look identical in catalogue thumbnails, but their steel grade and top gauge dictate whether they survive heavy meat cleavers, countertop mixers, and acidic spills.

Type 304 (18/8) vs. Type 430: Type 304 contains 8% nickel and resists rust in wet dish rooms, seafood prep areas, and salty environments. Economy Type 430 has zero nickel and will develop surface rust spots if exposed to vinegar, salt, or chlorine sanitisers.
14-Gauge (2.0 mm) vs. 18-Gauge (1.2 mm): Specify 14-gauge or 16-gauge tops with welded hat-channel under-bracing if the table will support a 40 kg planetary mixer, vacuum chamber sealer, or heavy butchery block. Reserve 18-gauge 430 tables strictly for dry plating or light assembly.

Storage Shelving Material & Humidity Comparison

Health inspectors immediately cite flaking chrome or rusting welds inside walk-in coolers. Match your shelving finish to the humidity and chemical exposure of each room.

Shelving Type	Walk-In / Wet Safe	Weight Capacity (per 1200 mm shelf)	Cleanability	Best Application
Chrome-Plated Carbon Wire	No — rusts at weld points in humidity	250 kg – 350 kg	Requires hand-wiping every wire	Dry goods pantry, paper goods, front-of-house retail display
Epoxy-Coated Wire (NSF Green/Black)	Yes (until coating chips)	250 kg – 350 kg	Must be scrubbed in place	Budget walk-in coolers, pot drying racks (avoid dragging sharp metal pans)
Fibreglass / Polymer Composite	Yes — 100% lifetime rustproof	300 kg – 360 kg	Removable vented shelf plates fit straight into dishwashers	Walk-in coolers, freezers, seafood storage, acidic pickle/brine rooms
Solid / Louvered 304 Stainless	Yes — impervious to moisture & heat	350 kg – 450 kg	Smooth wipe-down; zero wire crevices	High-load meat lockers, hot cookline overhead pass shelves, dish pits

HACCP Colour-Coding & Floor Reset Tools

Relying on verbal instructions to keep floor brooms away from food prep surfaces fails the moment a rush shift ends at midnight. Physical colour separation and heat-resistant bristle construction build food safety into the equipment itself.

Zone Separation

Brush & Squeegee Colour Zones

Assign one dedicated colour (such as black or orange) strictly to floor drains, grease traps, and walk-in thresholds, and wall-mount those handles in the mop sink closet—never near prep sinks where blue or white food-contact brushes hang.

Bristle Retention

Resin-Set vs. Stapled Bristles

Standard utility brushes hold bristles with metal staples that trap bacteria and pull loose inside kettles. High-hygiene food brushes seal polyester bristles with epoxy resin inside solid polypropylene blocks.

Floor Drainage

Closed-Cell Foam vs. Dual-Moss Squeegees

Quarry tile kitchen floors with deep grout lines shred solid rubber squeegee blades. Closed-cell neoprene foam double blades conform into recessed grout joints, pushing wash water cleanly into trench drains in a single pass.

Sanitation & Reset Care Accordions

Why mandatory 150 mm (6-inch) floor clearance matters for dunnage racks

Food codes across the UK, EU, and US require all bulk food, flour sacks, and clean equipment to sit at least 150 mm (6 inches) off the floor so mop water cannot splash onto packaging and pest activity can be spotted immediately. One-piece rotational-moulded polyethylene dunnage racks hold up to 680 kg while allowing a deck brush and squeegee to pass freely underneath.

Maintaining HDPE cutting boards before deep knife grooves harbour biofilm

Once a high-density polyethylene (HDPE) cutting board develops dark, cross-hatched knife trenches, chemical sanitisers can no longer reach the bacteria trapped at the bottom of the cuts. Use a handheld stainless block plane or commercial board resurfacer every quarter to shave 0.5 mm off the top surface, restoring a smooth, non-porous face without buying new boards.

Matching sanitiser test strips to your three-compartment sink chemistry

Chlorine bleach strips cannot read quaternary ammonium ("quat") sanitisers, and water temperature drastically alters efficacy. Chlorine requires 50–100 ppm at warm water temperatures (24°C–49°C) and gasses off if water is too hot; multi-quat requires 200–400 ppm and roughly 30 to 60 seconds of full immersion before air-drying.
